Surge protector, also called lightning arrester, is an electronic device that provides safety protection for various electronic equipment, instruments and communication lines. When a spike current or voltage suddenly occurs in an electrical circuit or communication line due to external interference, the surge protector can conduct and shunt in a very short time, thereby preventing the surge from damaging other equipment in the circuit.

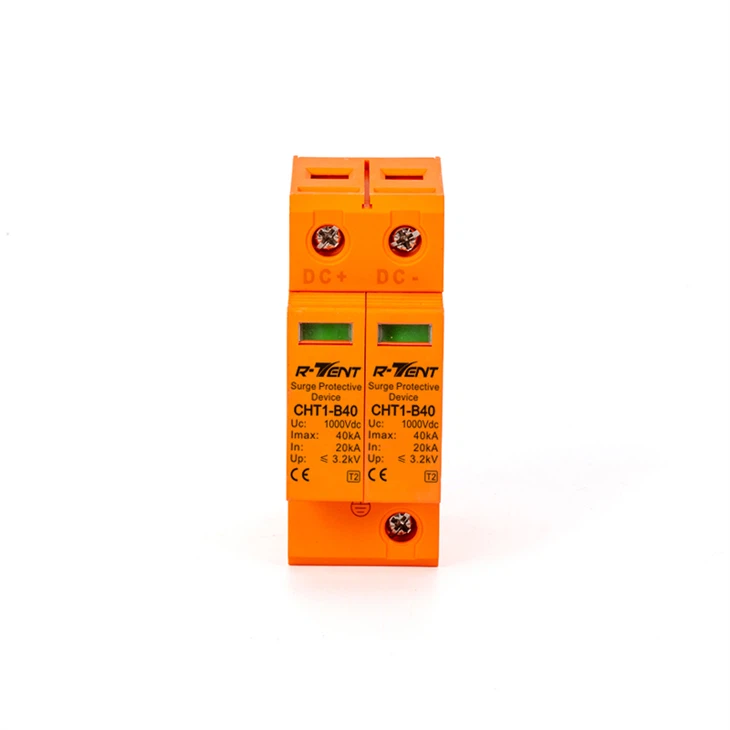

CHT1 series surge protector (hereinafter referred to as SPD) is mainly used for lightning protection of photovoltaic low-voltage DC power distribution system. The product adopts a new design, with a maximum continuous working voltage of up to 1500V, which can effectively prevent lightning current from damaging photovoltaic supporting facilities such as solar panels, photovoltaic junction boxes, DC distribution cabinets and inverters. CHT1 series SPD has common mode (MC) and differential mode (MD) protection modes. The product complies with IEC61643-1 and GB50057-2010 standards.
Product Application
DC surge protectors are mainly used in DC power supply systems and can effectively limit surge voltages and protect downstream equipment from damage. Its working principle is to limit the voltage within a safe range by directing surge voltage into the ground wire or absorbing surge energy. These protectors usually consist of multiple components, including surge voltage suppressors, fuses, thermal protectors, etc.
Dimension
2 Pole
3 Pole
Main Technica Parameters
|
Name |
|||
|
Series No |
CHT1-(C)8 |
CHT1-(C)8 |
CHT1-(C)8 |
|
Speci-fications |
2 pieces 36mm | 2 pieces 36mm | 2 pieces 36mm |
|
Nominal capacity the fiow In(KA8/20μs) |
20 |
20 |
20 |
|
Maximum fiow capacity lanx(KA820μs) |
40 |
40 |
40 |
|
Protection level(kV) |
2.2 |
2.4 |
2.6 |
|
Response time (ns) |
25 |
25 |
25 |
|
Rated Voltage (VDC) |
500 |
800 |
1000 |
|
Continuous to work Voltage(VDC) |
550 |
880 |
1100 |
|
Leakage current 0.75U ImA(μA) |
≤20 |
s20 |
≤20 |
|
Working temperature(C) |
-40~+85 |
-40~+85 |
-40~+85 |
