Product Overview
CHK-0.66K Split Current Transformertransformers are specially designed for easy installation. Because of the split core, there is no need to open any cables or busbars during installation.
The connection of ordinary transformers often requires the termination of the primary current to allow the cable or busbar to pass through the transformer core, or to connect the cable to the primary terminal.
The DP series transformer core can be easily opened and can be installed and connected without suspending the line, thus saving time and installation costs.
Product Features
1. Small size, easy to install
2. Large internal window, can pass clamps, cables or busbars
3. Various sizes are available, suitable for all current installation methods
4. High precision and reliability.
Type Description
Appearance and installation dimensions
|
Size Specification SIZE |
Outline size(mm) |
Through size (mm) |
Note |
||||
|
W |
H |
D |
a |
e |
Specification (A) |
Quality (kg) |
|
|
K-30×20 |
90 |
112 |
40 |
22 |
32 |
22-400 |
0.8-0.9 |
|
K-60×40 |
114 |
141 |
36 |
42 |
62 |
250-2000 |
1.0-2.0 |
|

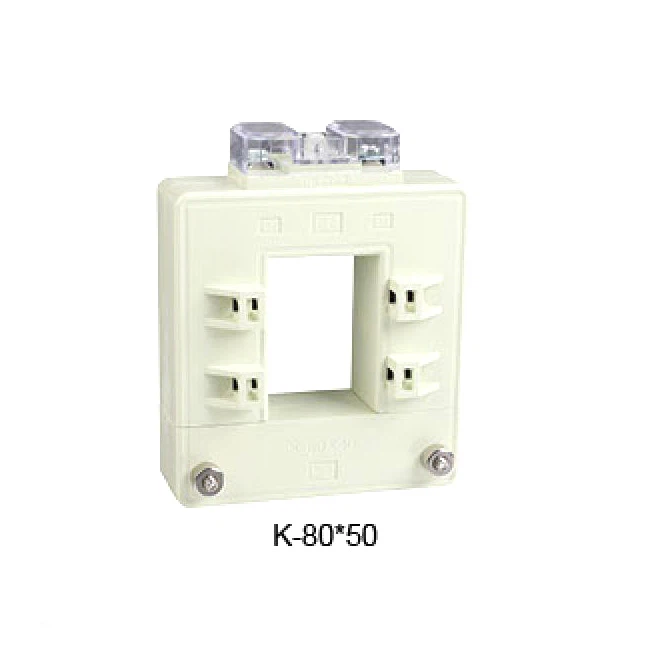

K-80×50 |
123 |
164 |
40 |
52 |
82 |
250-1000 |
1.1-1.4 |
|
K-80×80 |
144 |
161 |
36 |
82 |
82 |
250-1000 |
1.3-1.5 |
|
K-120×80 |
144 |
199 |
36 |
82 |
122 |
500-1000 |
1.5-2.3 |
|
K-100×50 |
141 |
190 |
48 |
52 |
102 |
1000-5000 |
1.6-3.2 |
|
K-140×60 |
164 |
230 |
50 |
62 |
142 |
1000-5000 |
1.7-3.7 |
|
K-160×80 |
184 |
250 |
52 |
82 |
162 |
1000-5000 |
2.8-3.7 |
|
K-200×80 |
184 |
294 |
52 |
82 |
202 |
1000-5000 |
3.5-4.5 |
